INDUSTRIAL

Doors And Equipment

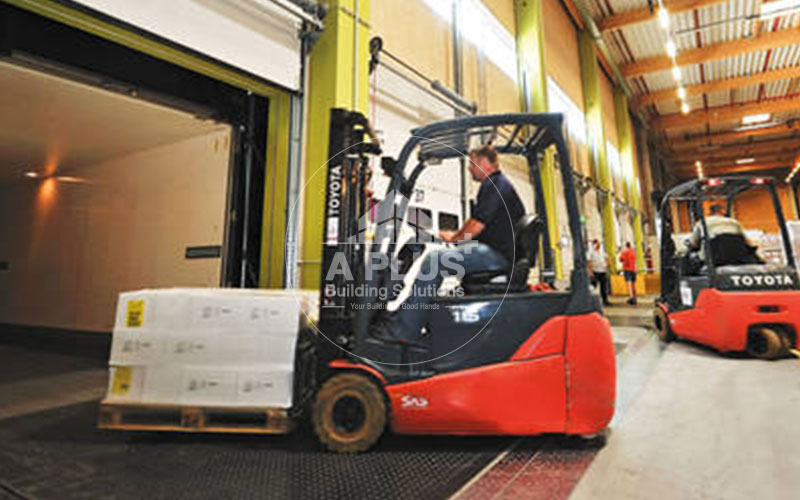

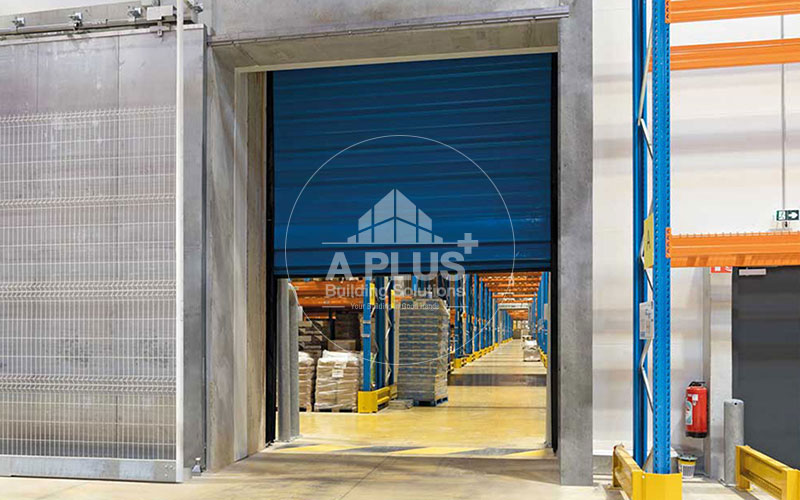

Freezer room doors

Thanks to 100mm thick PU-panels, heating systems and special seals between the building structure and ground, the ISO Speed Cold is the optimum solution for all areas with high temperature differences and cold storage room up to -28 degree Celsius. Used as a high-speed door in cold-storage halls or to save energy in production and distribution areas, the ISO Speed Cold should be your choice to reduce energy cost by reducing opening times. The thermal insulation value of the ISO speed cold is 0.3 W/(m2 K) and the opening speeds are of 1.5 m/sec to 2 m/sec.

With our flexible curtain folding high speed door we offer an alternative to the integrated heating system suitable for temperature as low as -30 degree Celsius. The triple-insulated curtain reliably reduces cooling losses in cold store areas. The robust self-supporting frame with innovative flexible guide belts prevents damage and resulting downtimes of the door system.With opening speeds are of 1 m/sec. the door ensures a rapid flow of traffic for maintaining the cold chain.

Download pdf

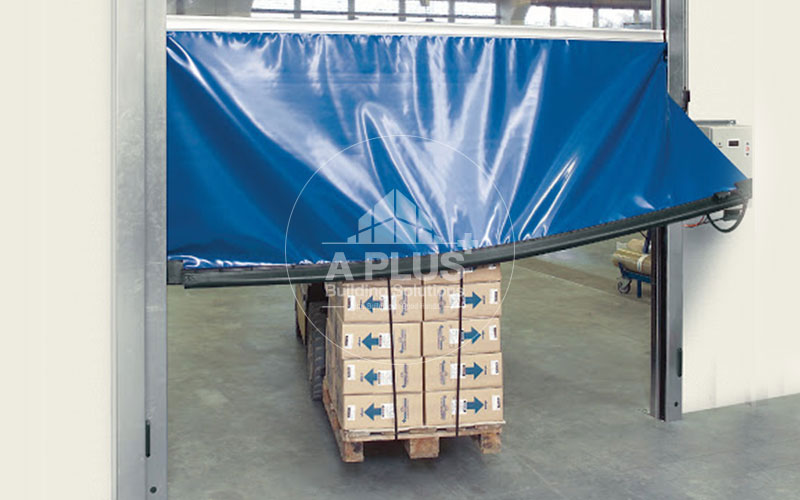

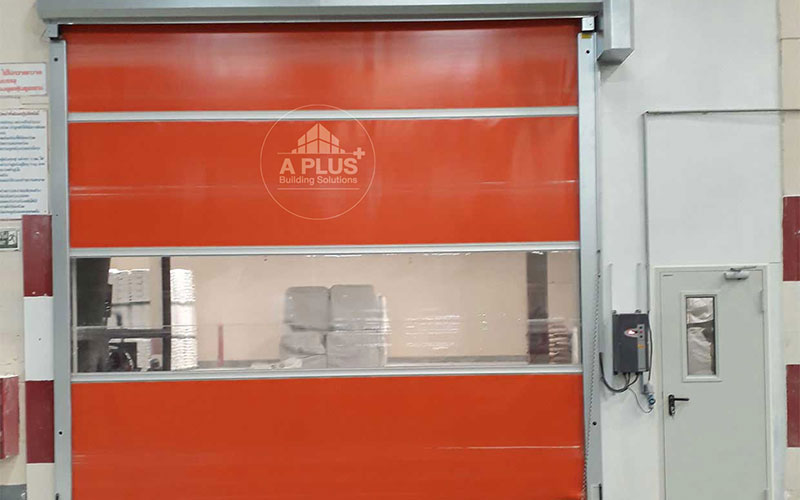

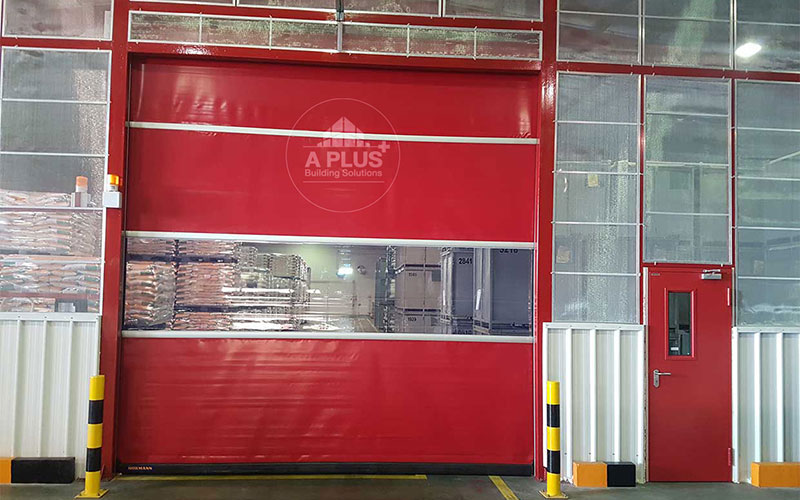

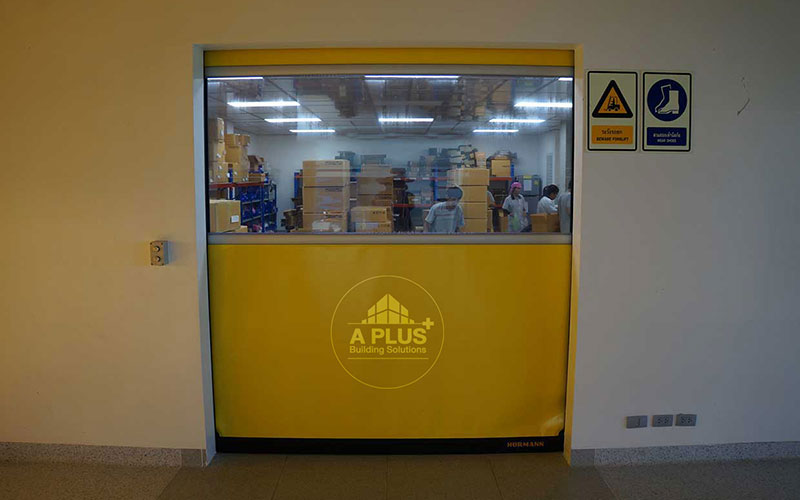

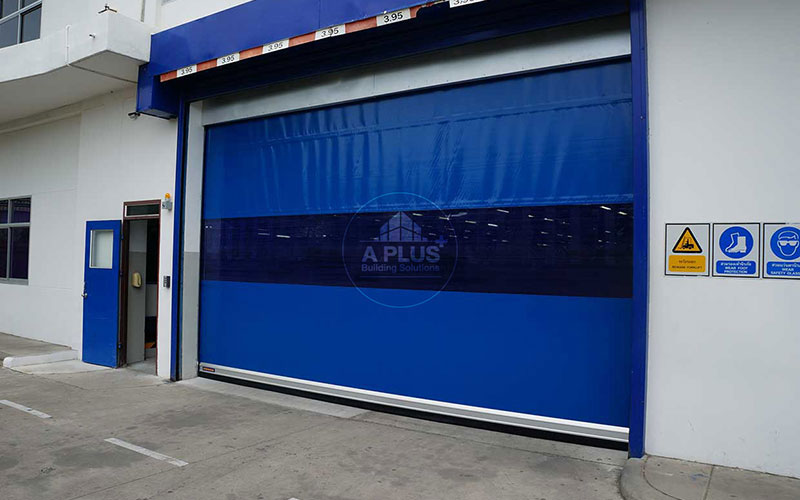

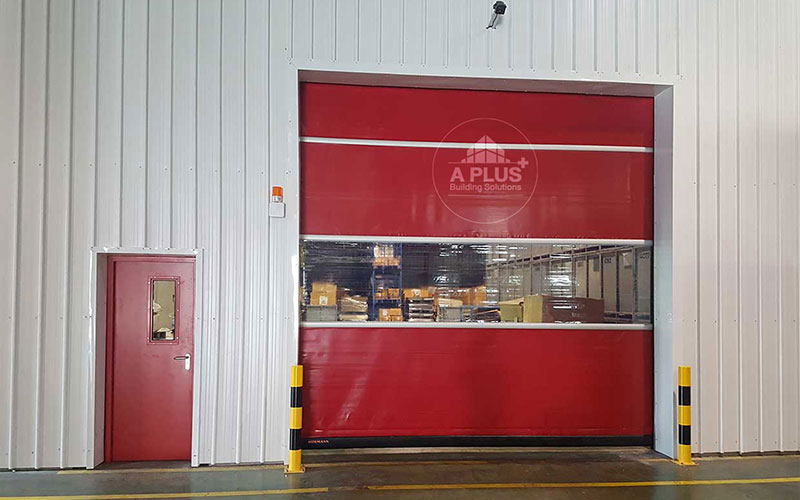

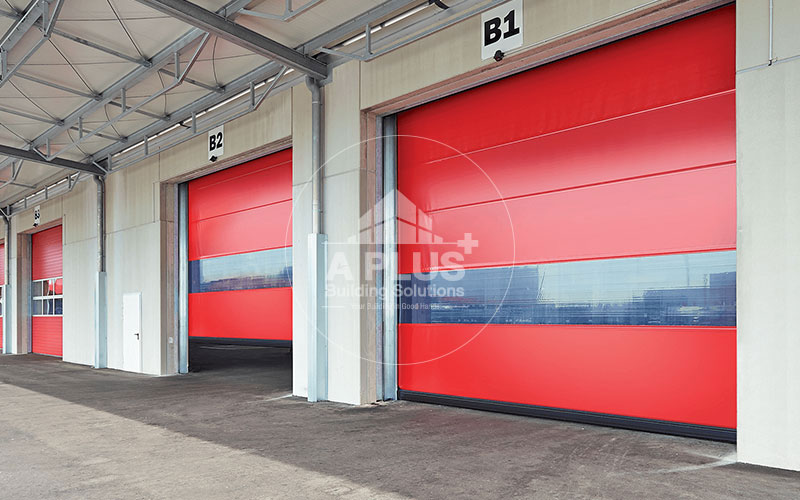

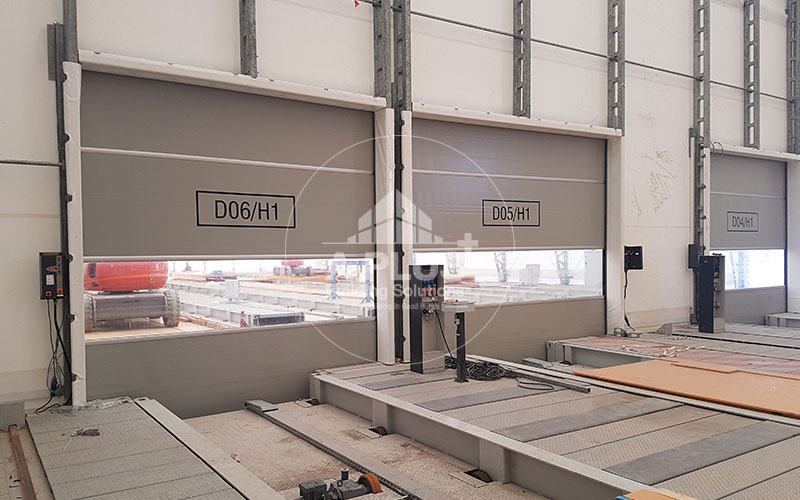

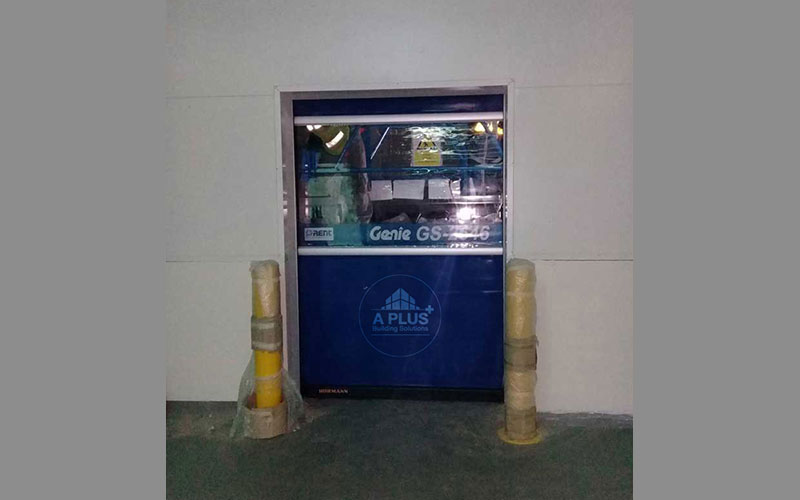

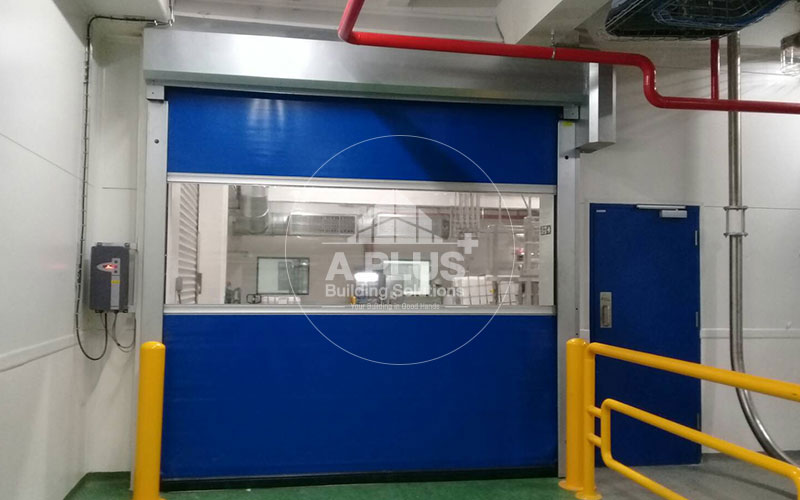

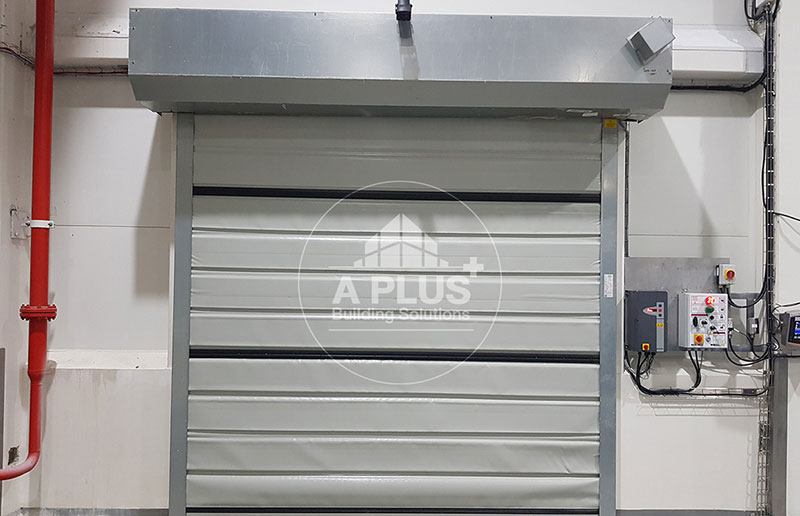

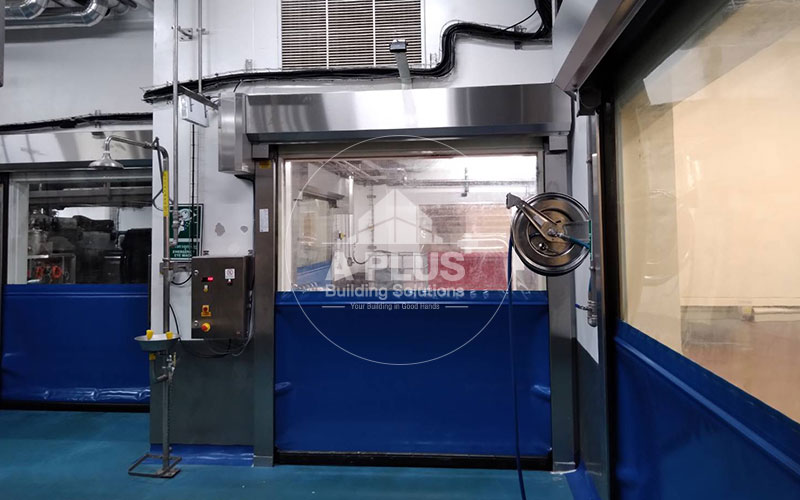

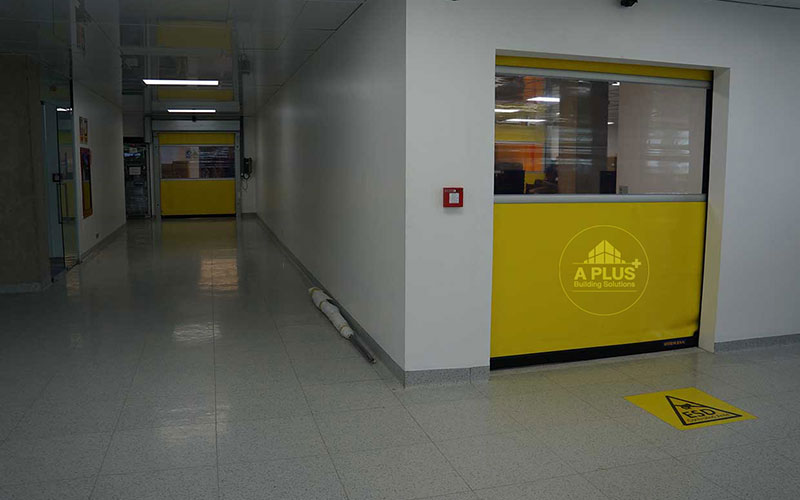

High speed doors

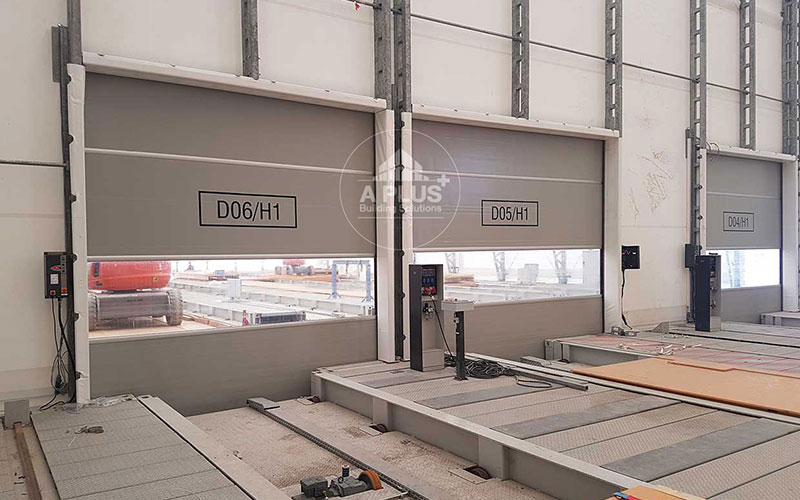

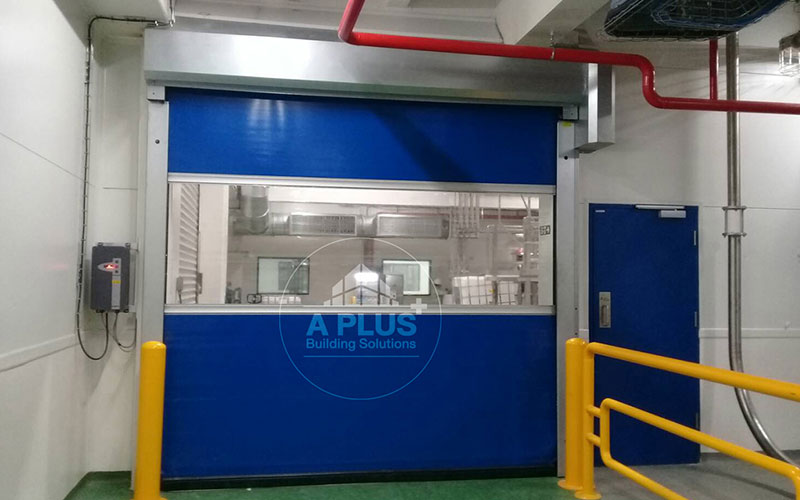

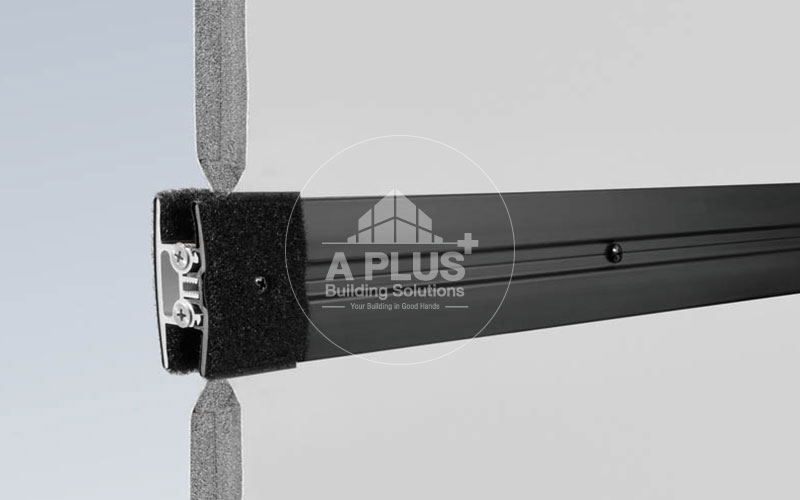

Fast action (high speed) fabric doors are an efficient and practical way to increase workrate and reduce noise levels whilst maintaining the most stable environment in a warehouse or factory.

Their lightweight construction and precise connection with the guide rails allows them to operate at faster speeds than usual with opening speeds of 1.5 m/sec to 3 m/sec. Tough materials, excellent safety devices and the soft edge crash protection system ensure the door is perfect for a busy and aggressive work environment.

Download pdf

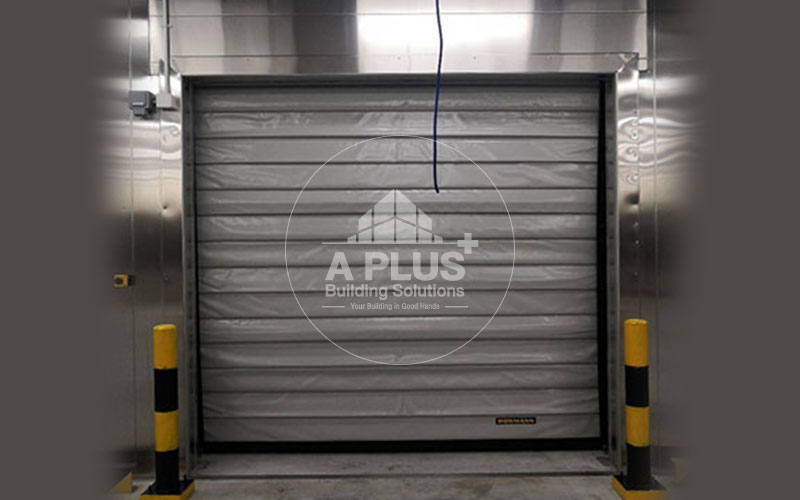

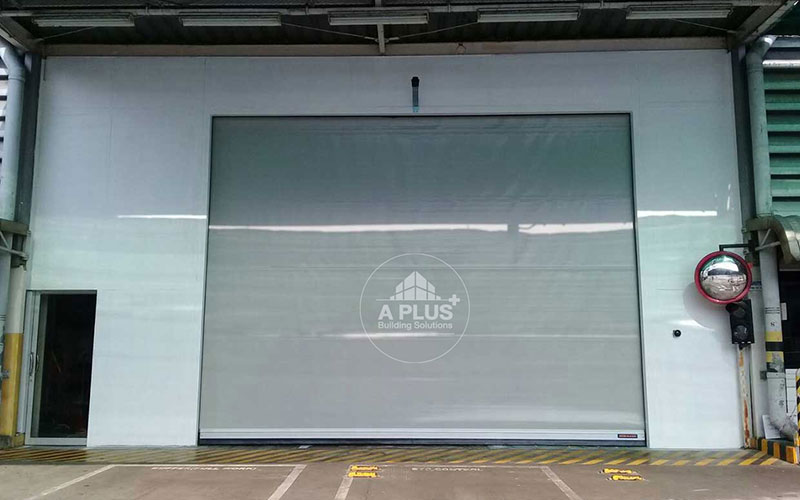

Insulated High Speed Doors

If you look for a flexible high-speed door and a clean surface, combined with good insulation characteristics, you will need to look at our V41015 ISO L. This roll-up flexible high-speed door has a 20mm thick PE foam infill. This infill helps to achieve a thermal insulation value of Up = 1.6 W/(m2 K) and makes it suitable for cold rooms as low as 5 degree Celsius. With speeds of up to 1.5 m/s it is the best solutions for your cold rooms in fresh food logistics.

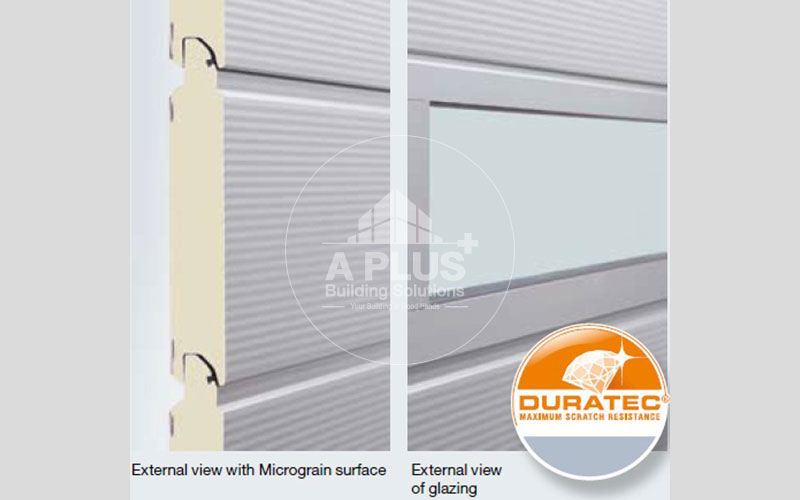

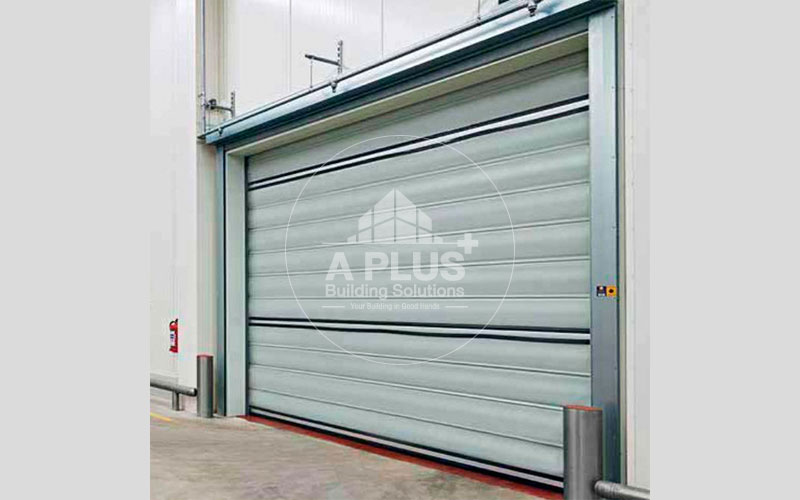

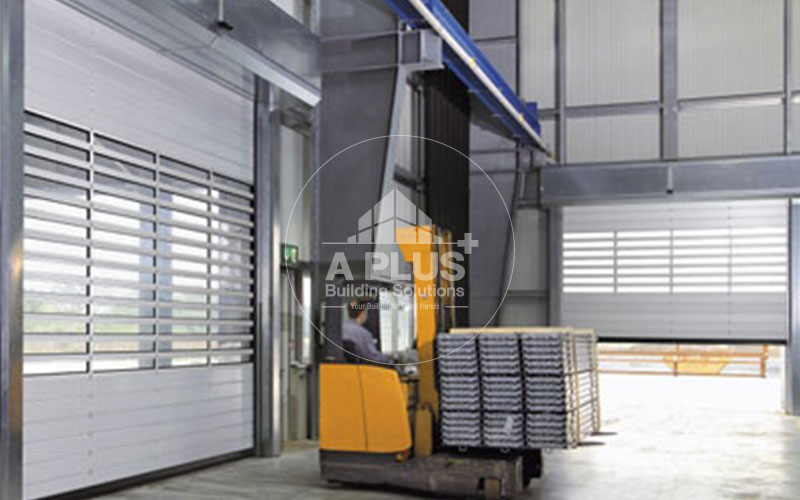

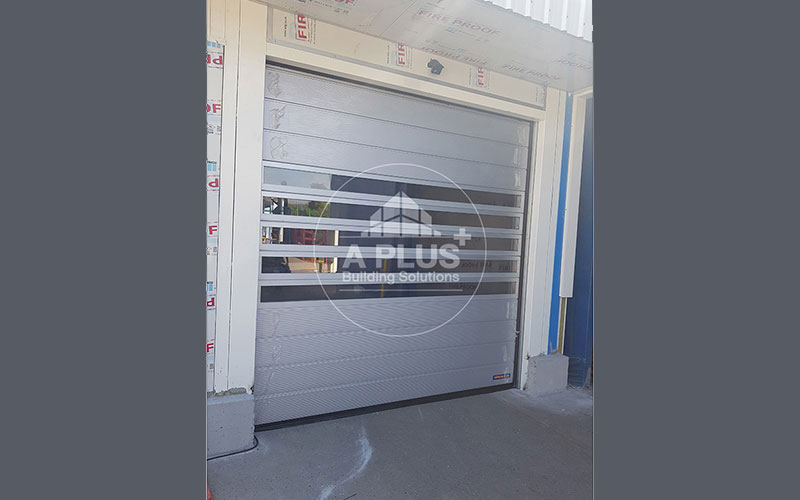

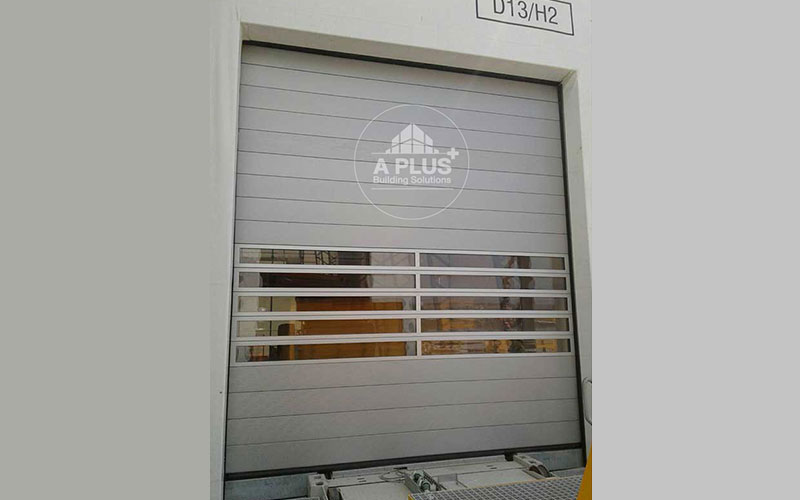

The spiral door HS 7030 PU is characterized by an elegant Micrograin surface finish with hot-galvanized, double-skinned steel sections. The door providing excellent thermal insulation, wind load resistance and break-in protection combined with fast opening speeds of up to 2.5m/sec. In combination with radar detector, present sensors and safety light grill the door helps a fast workflow with saving energy costs.

Download pdf

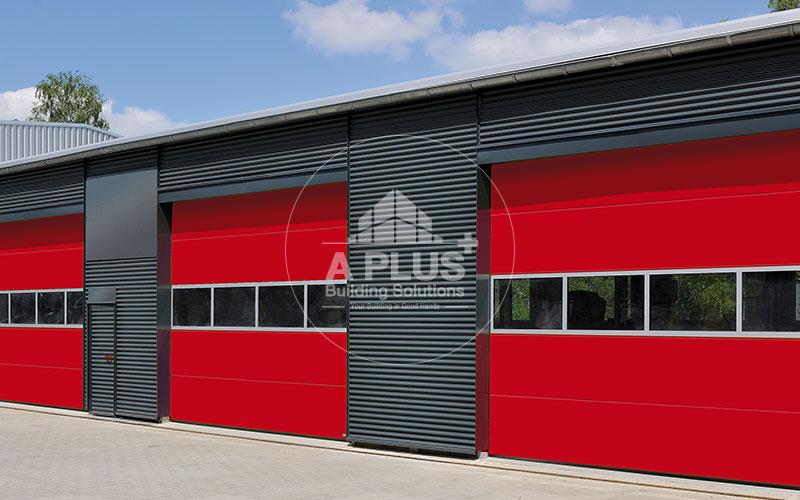

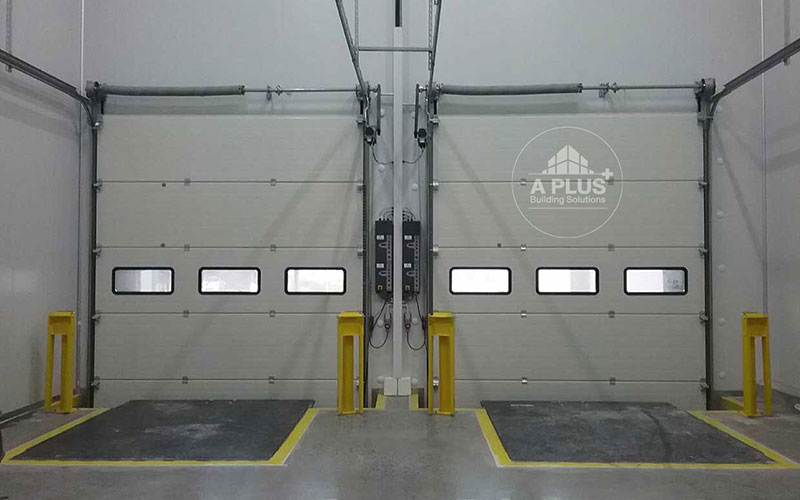

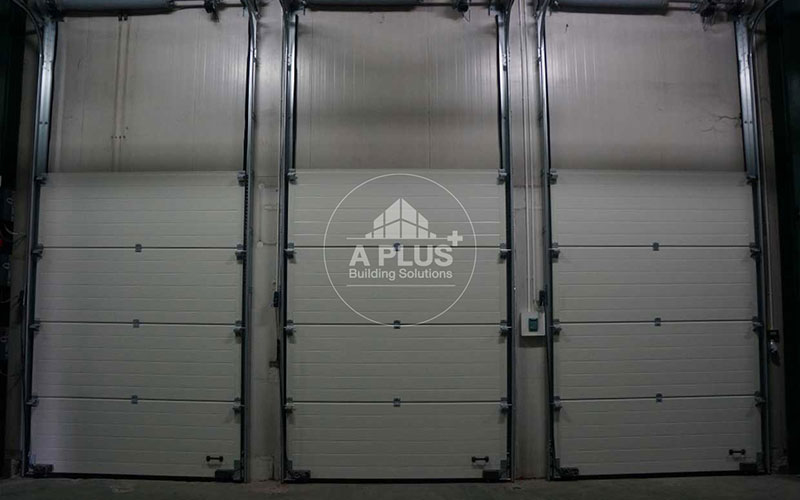

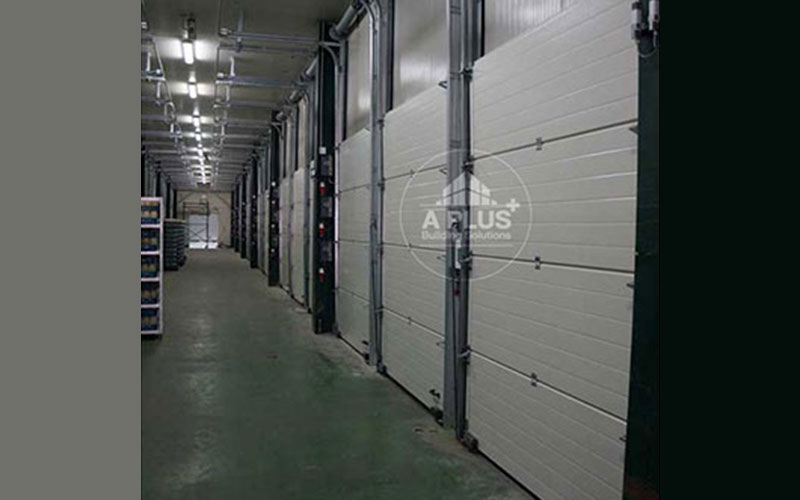

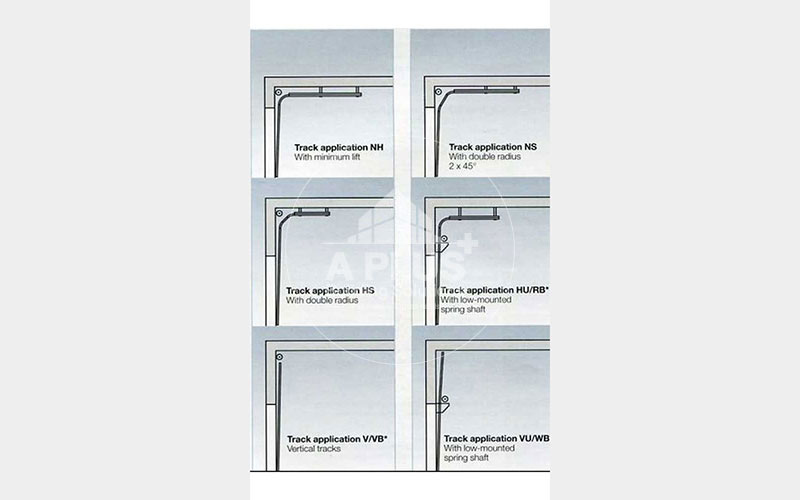

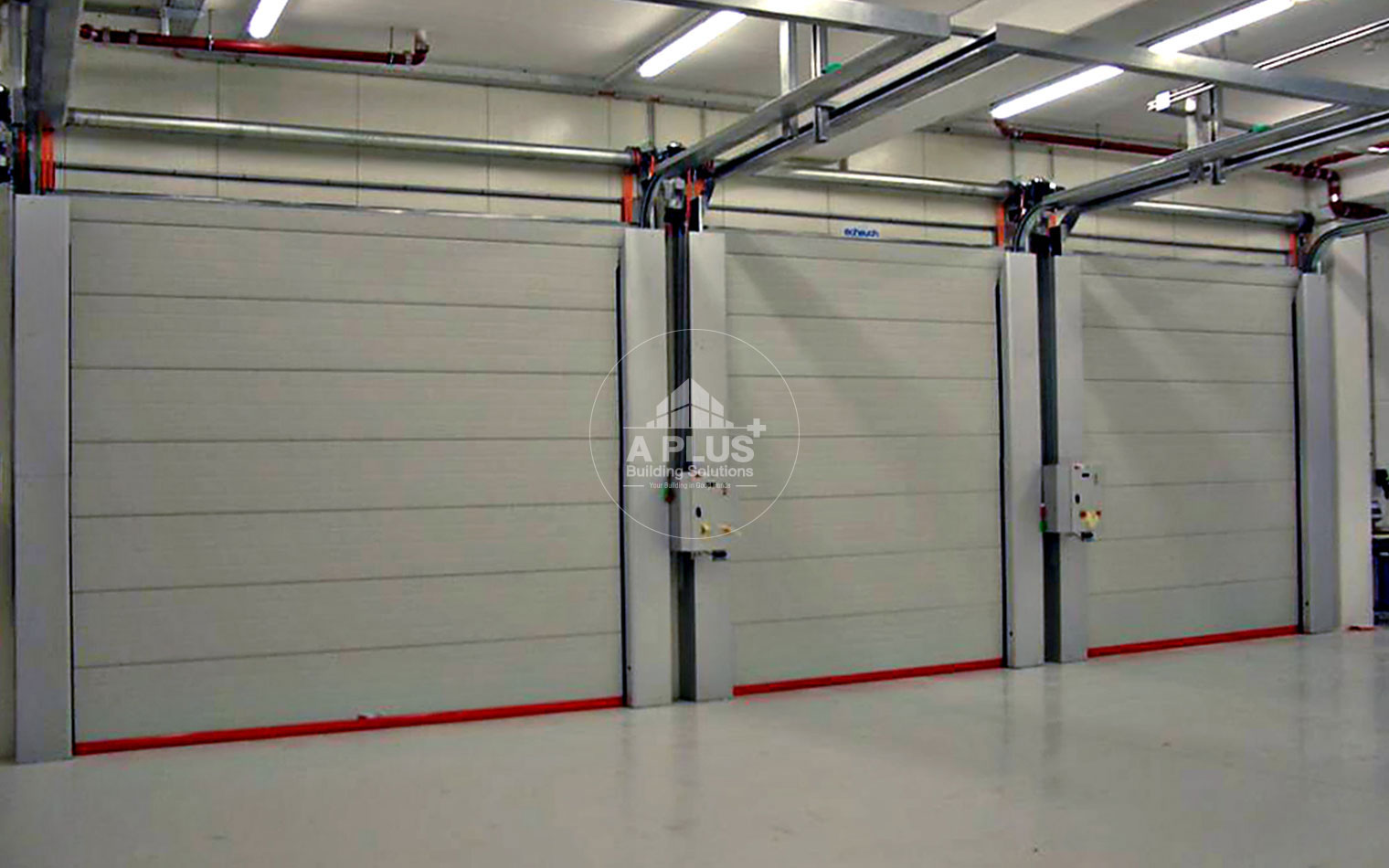

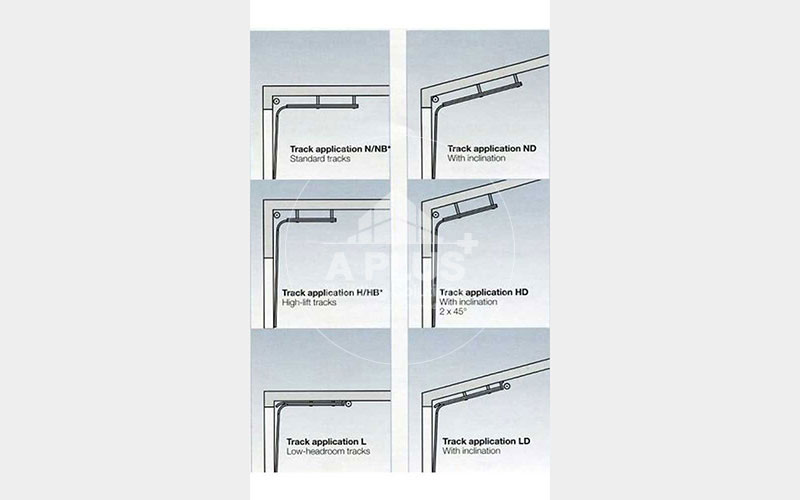

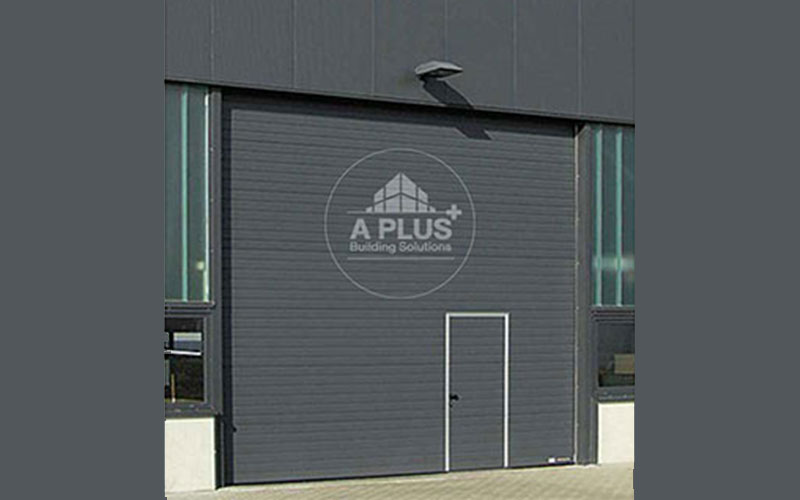

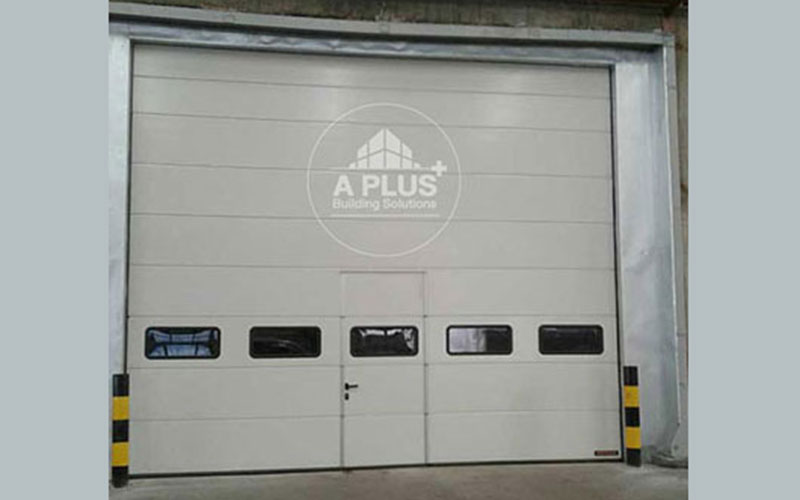

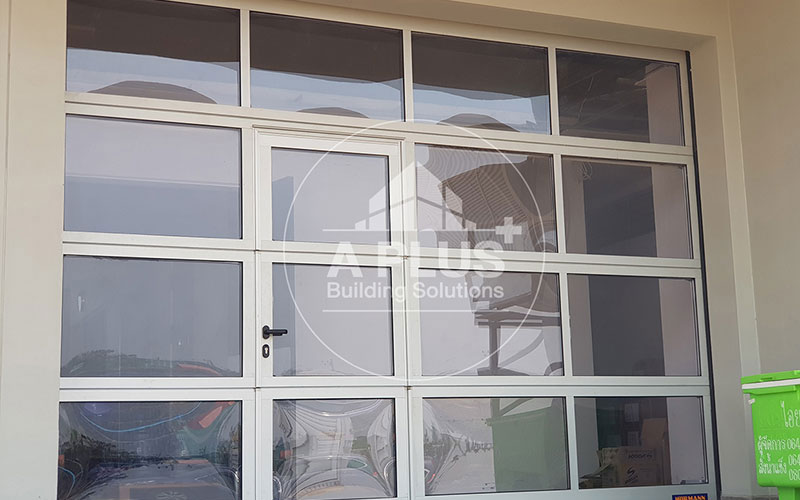

Sectional Overhead Doors

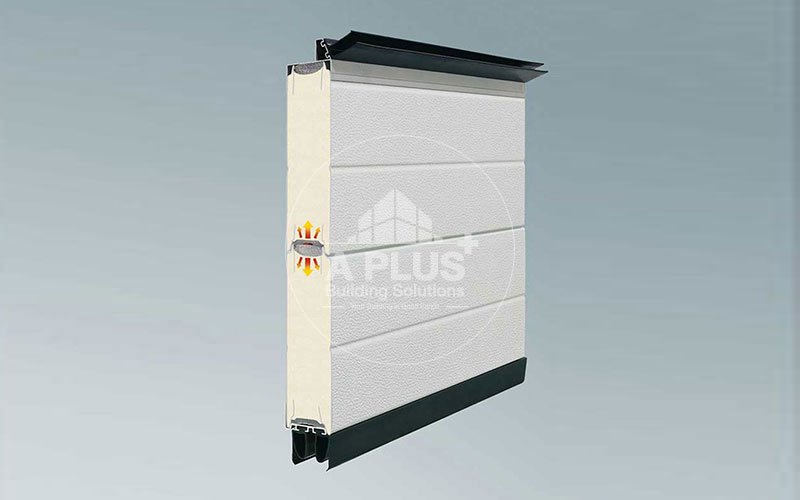

Sectional doors open upwards. This creates space in front of and behind the door. The door also requris minimum side and head rooms to fit it in tight spaces. Hoermann’s SPU40 and SPU67 are proven sectional doors made of PU filled steel sections in 42 or 67mm thickness, that makes the door robust and insulating. Because of a spring loaded system the doors can be operated manually or with operator.

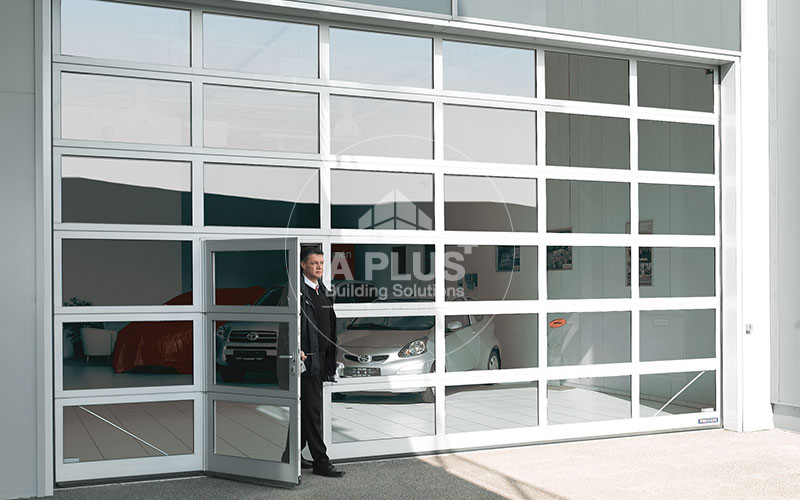

A varity of options such as wicket door and glazings round up the series to fit many application areas such as factories, cold rooms, storage and distribution buildings as well as showrooms. The maximum size ranges of 8 meters witdh and 7 meters height can be extended until 11.5 meters of width by SPU40 XL.

Download pdf

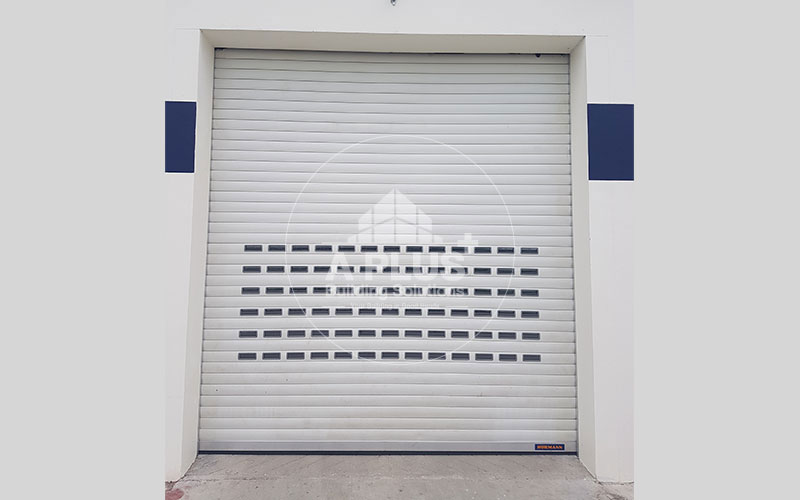

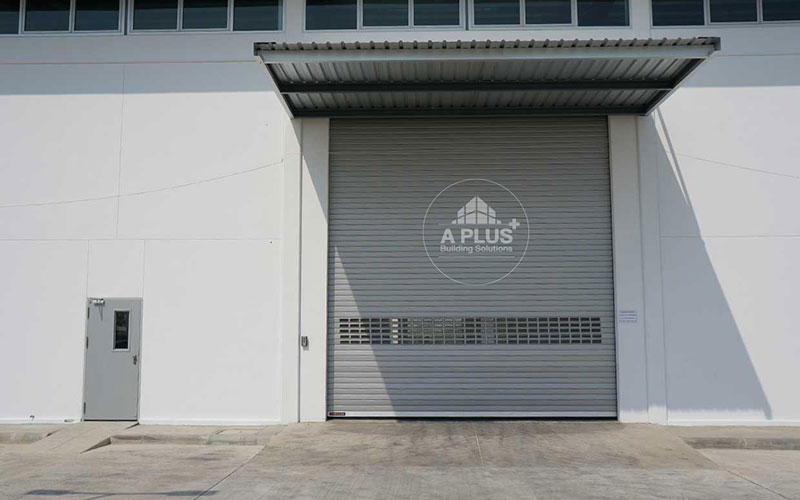

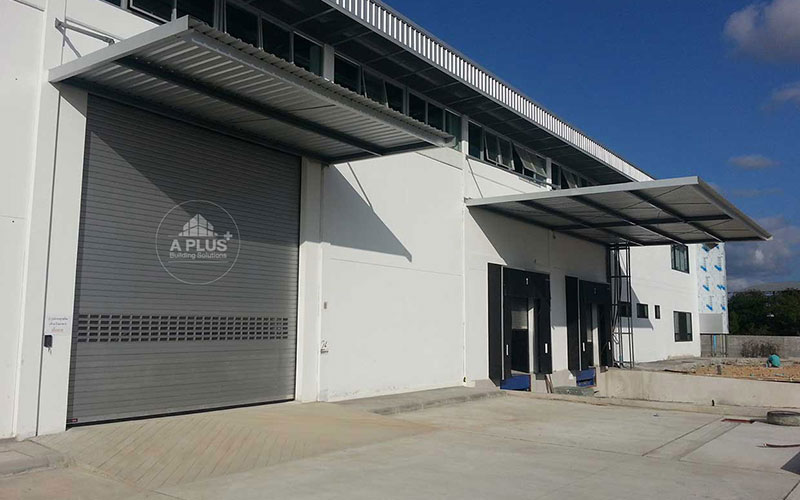

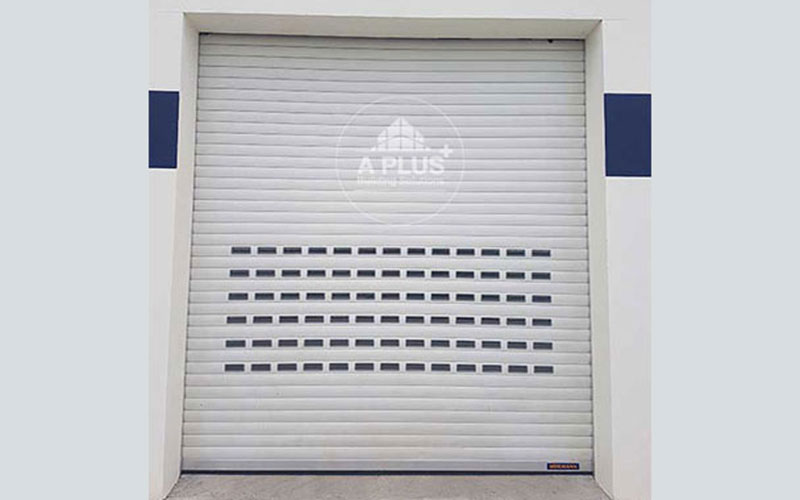

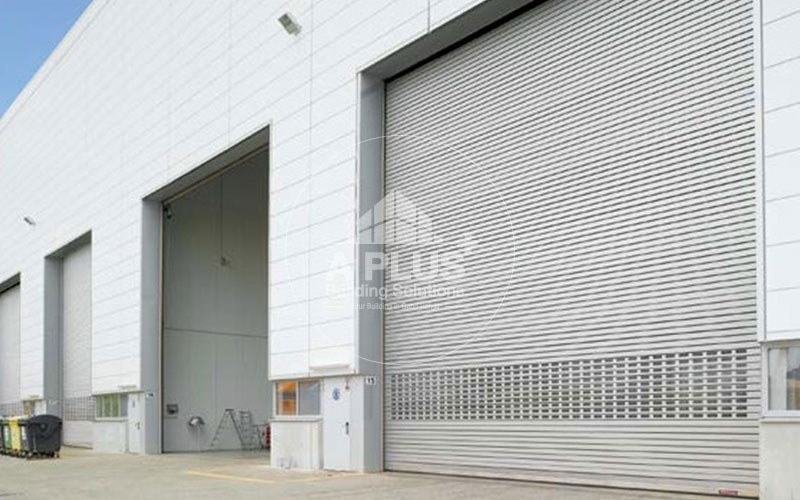

Industrial Roller Shutter Doors

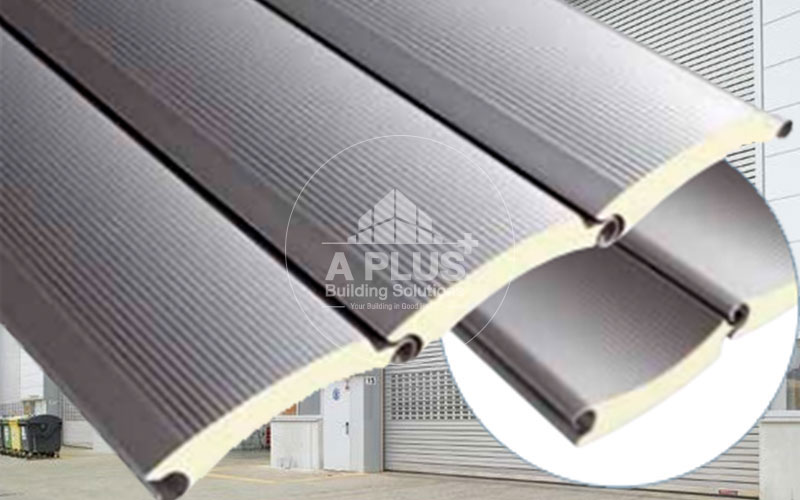

Industrial Roller Shutter Doors are a highly adaptable and space saving form of door, ideal for Industrial premises with sizes available up to 11.5 metres wide and 10 metres high.

The space-efficient range of highly durable roller doors are very practical for use in factories, warehouses and similar applications. Our rolling doors can be ordered in many variations. Insulated or non insulated, manually operated, standard motor or high speed (1m /sec). Additionally we can equipe vision or ventilation panels, security locks, wind locks and many other options.

Download pdf

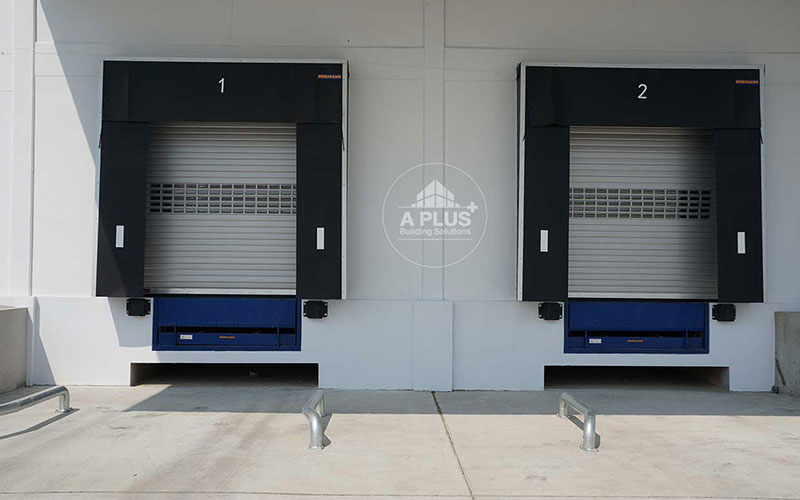

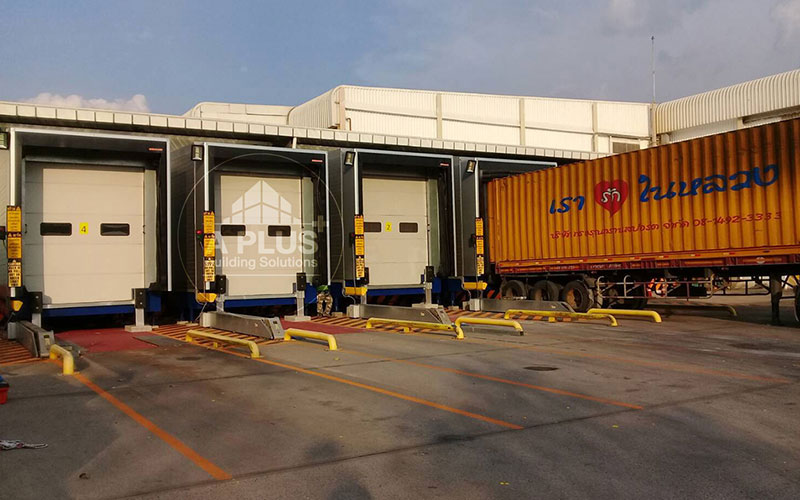

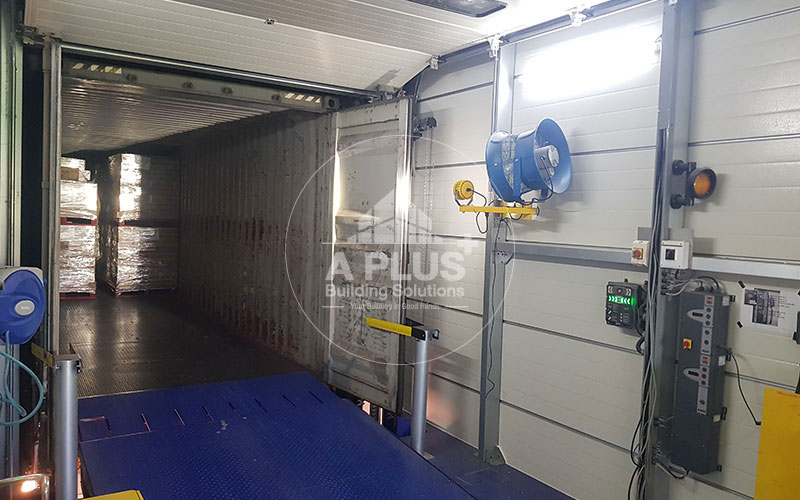

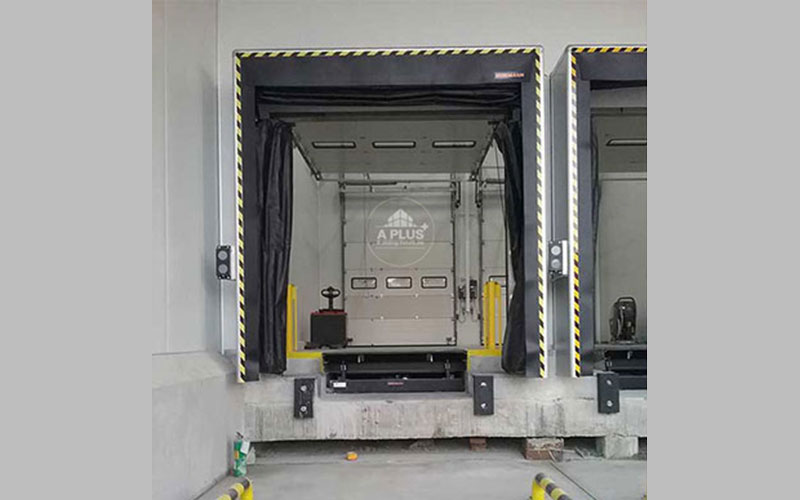

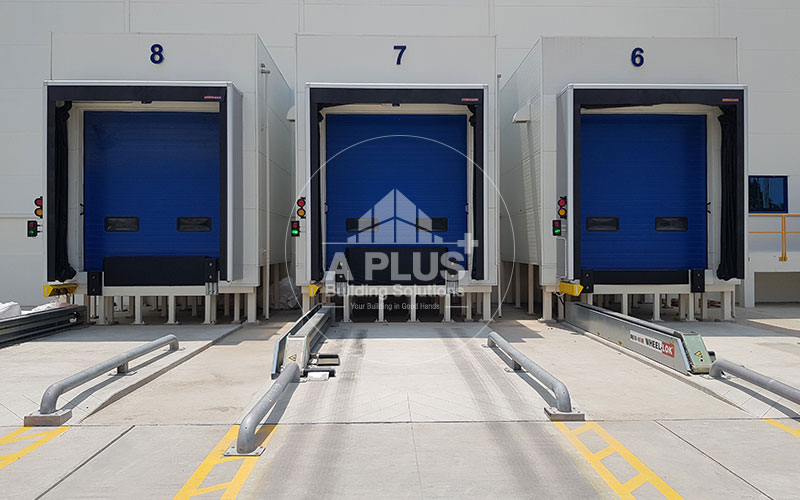

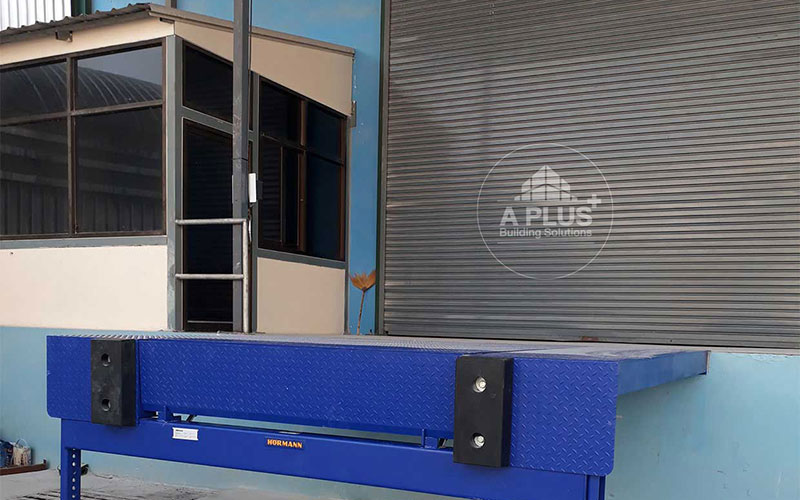

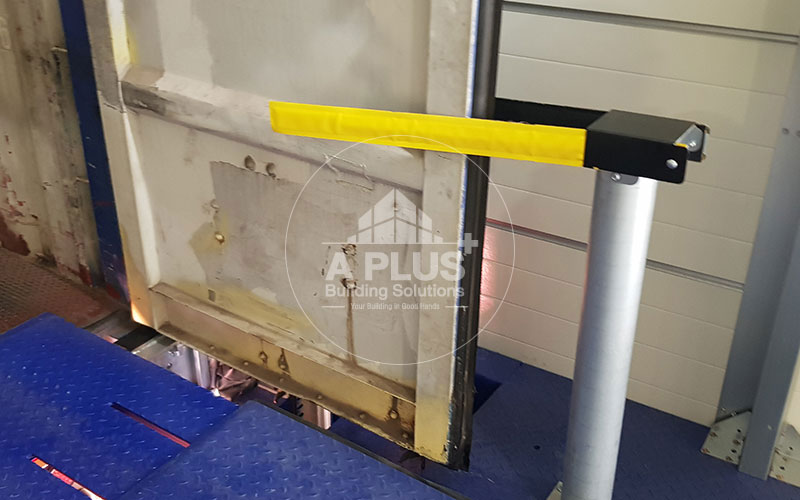

Loading Technology

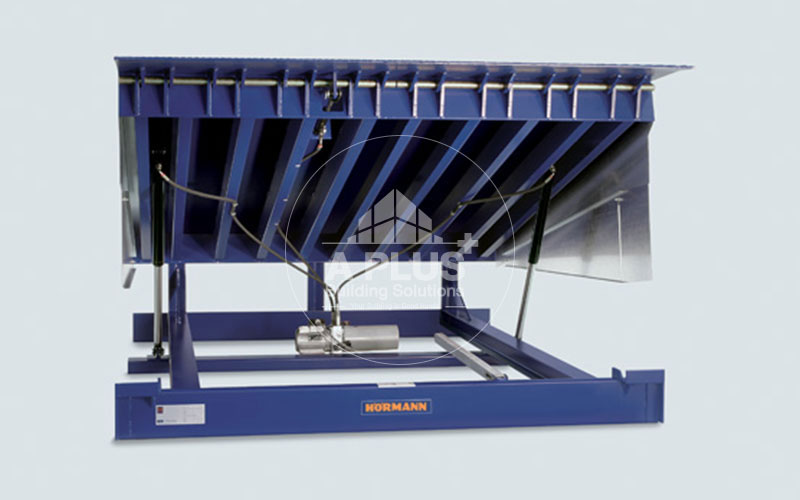

Hydrolic dock leveller, manually operated or with motor/control with hinged or telescopic lips and variouse sizes and specs are the core of loading technoloy products offered by A+. Particularly sturdy steel frame (6t or 10t dynamical max load) in combination with two hydrolic cylinder ensure reliable fixing in the building structure, one of the most important prerequisites for a long service life.

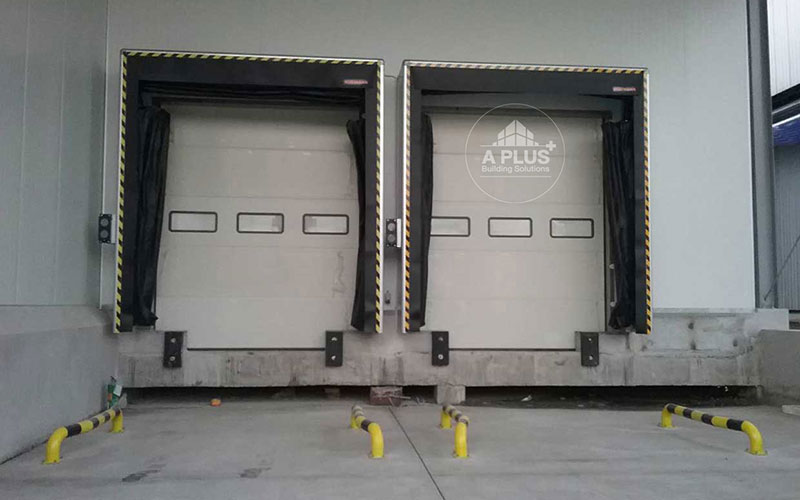

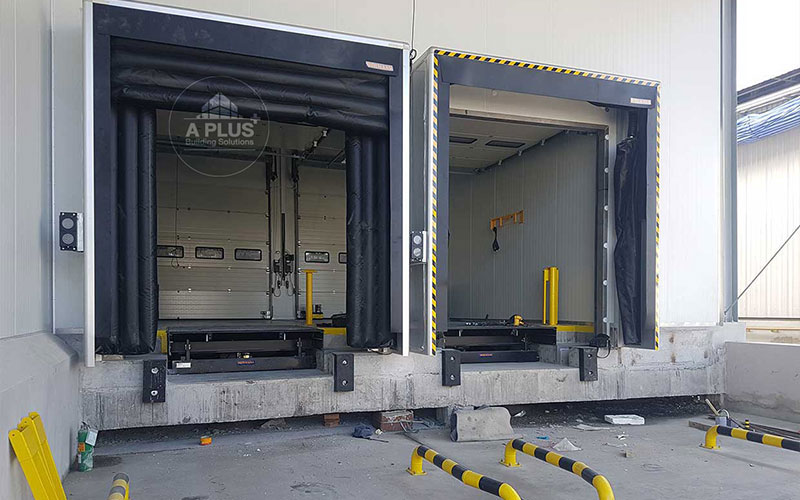

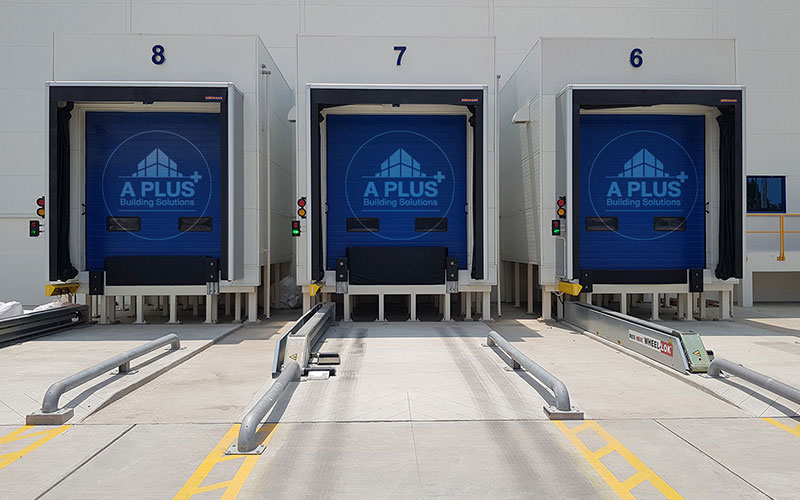

Flexible and inflatiable dock seals installed to the building or in combination with a Hoermann loading house round up a complete package of loading technoloy solutions. This seals are useful to protect the building from dust and heat.

Download pdf

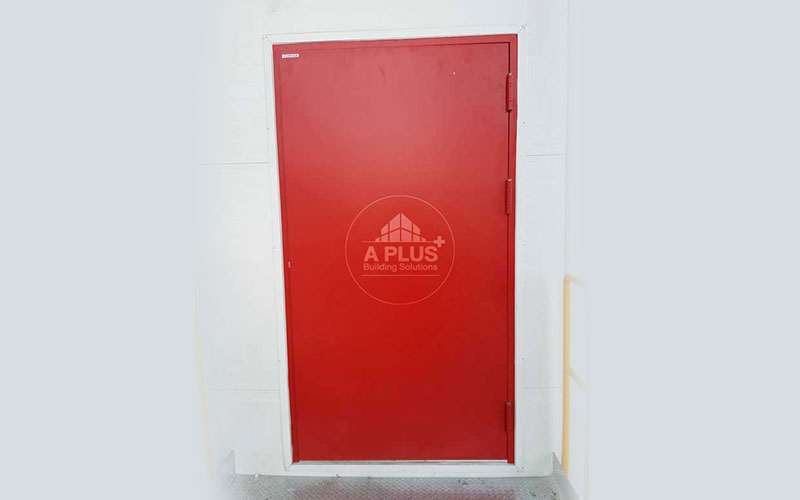

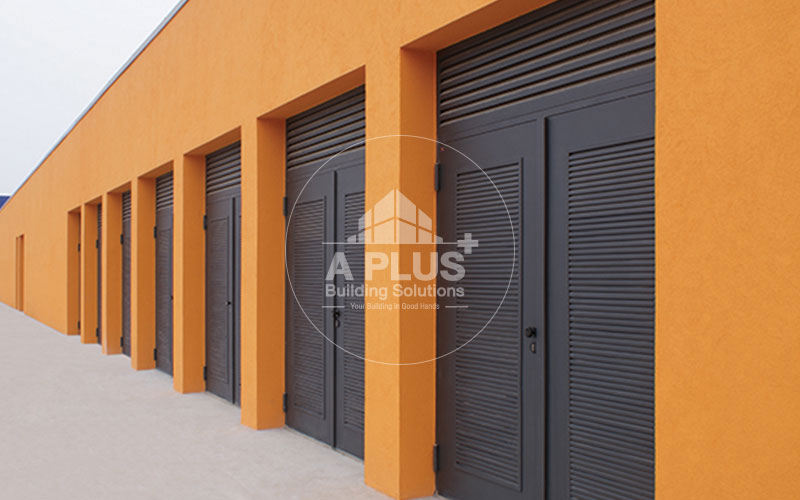

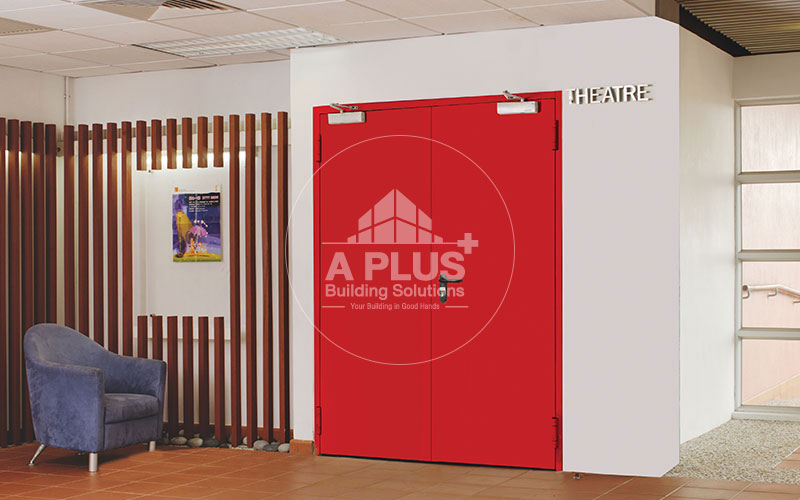

Steel doors

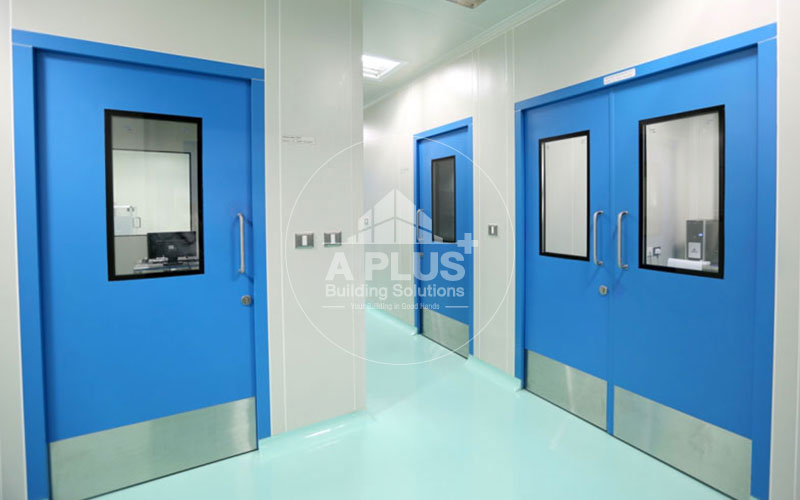

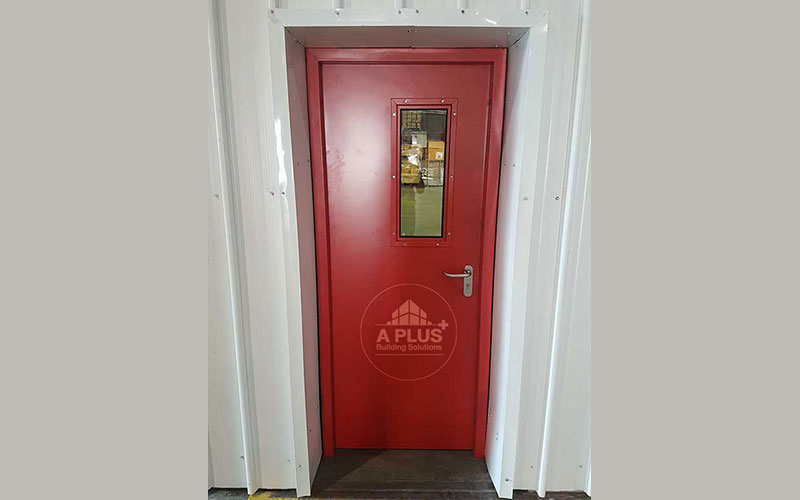

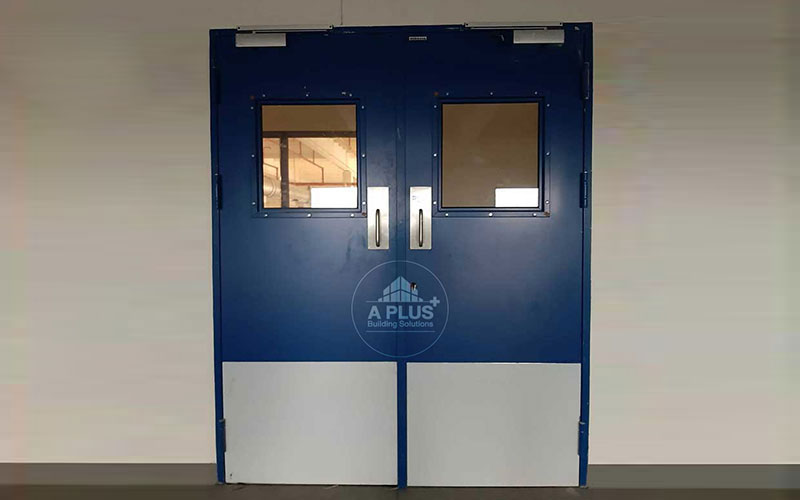

Multi-purpose steel doors have a wide range of choices offer excellent solutions for industrial buildings. The door leaf can be equipped with not only various glazing and ventilation grilles, but also special hardware and cut-outs on request.

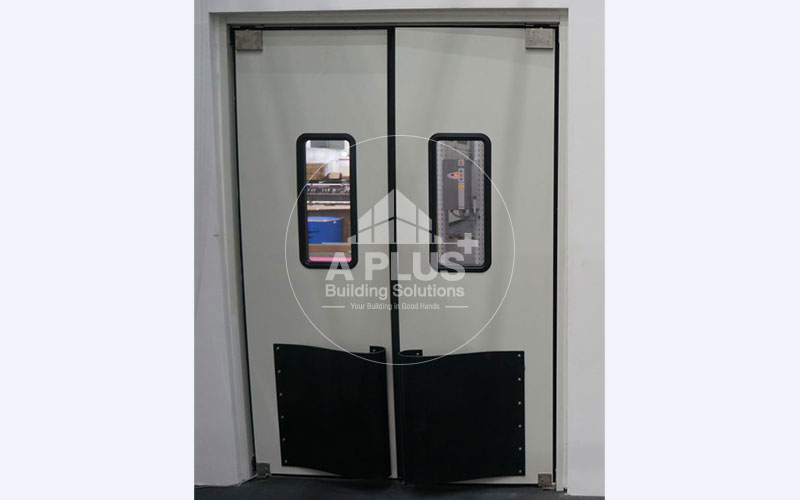

With our new Steel impact swing door HSWi we are offering a solution for areas where two-way passing is frequent and are an ideal choice for warehouses and logistic facilities

Download pdf

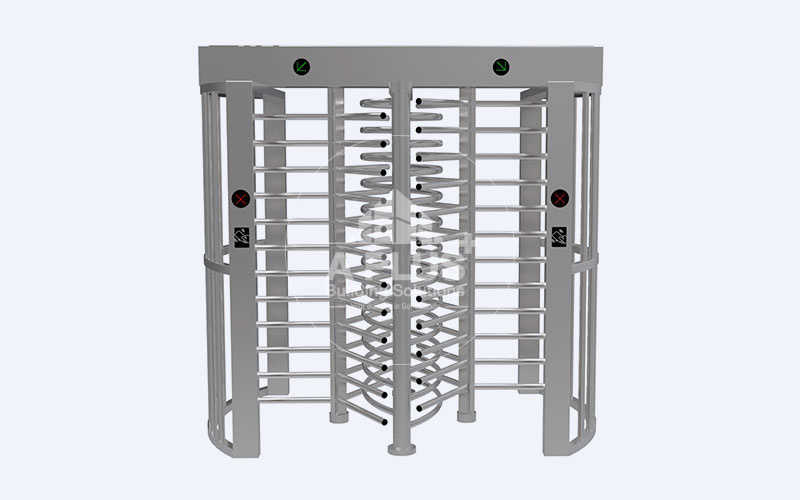

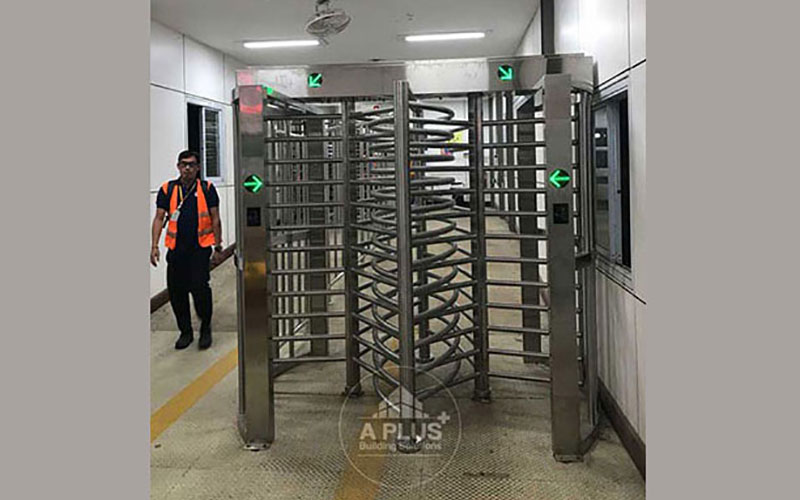

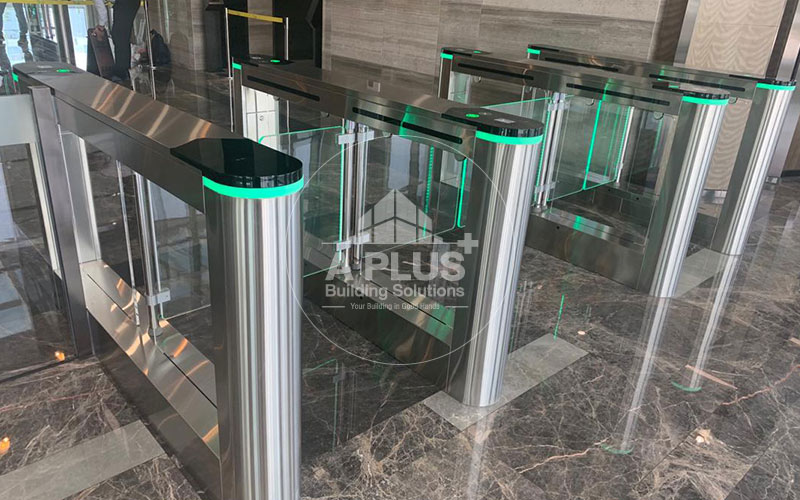

Turnstiles, Speed Gates and Access Control

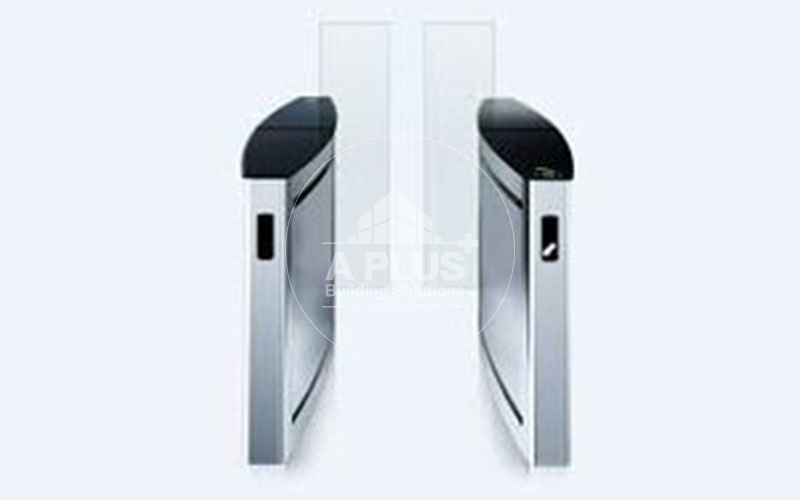

With a full program of stainless steel turnsiles (standard and full height), speed gates and flap gates A+ offers everything you need to control access to office buildings, factories or public places. In combination with RFID card reader, finger print readers or other accessories, A+ is the your partner for a complete access control solution.

Download pdf

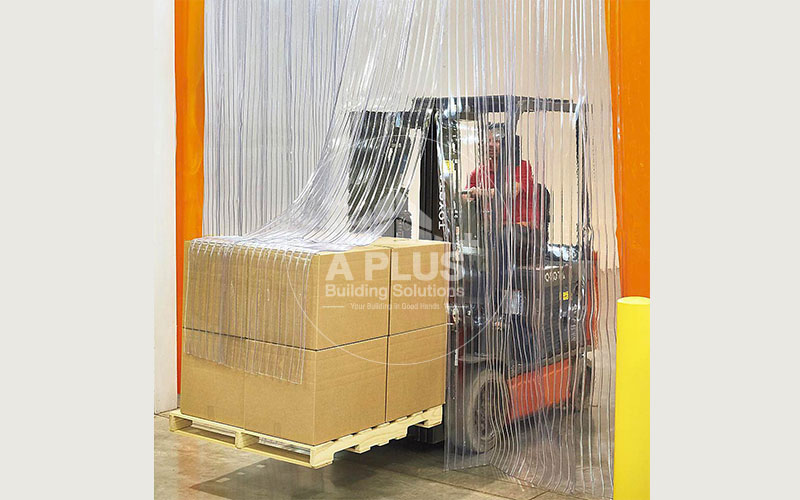

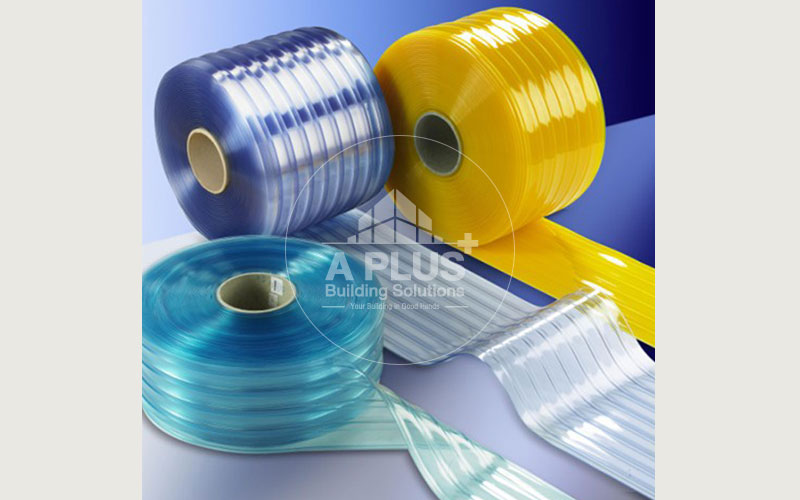

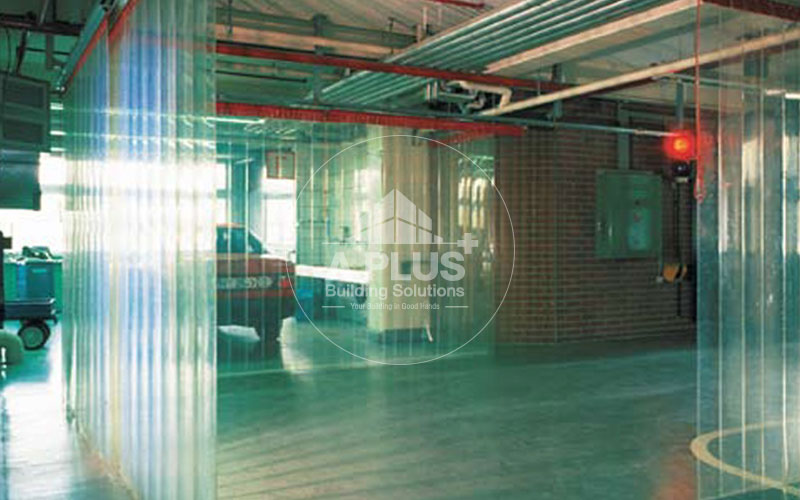

Strip Curtains

Strip doors, or strip curtains, are a great way to reduce energy costs and separate workplace environments. A+ offers high qualitly stip curtains with stainless or PVC fittings in alsmost any form and size to fit your need.

Download pdf

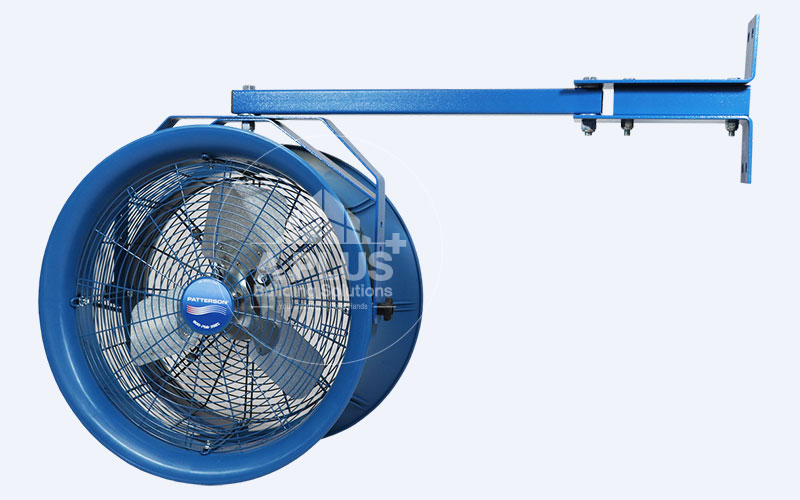

Other Equipment

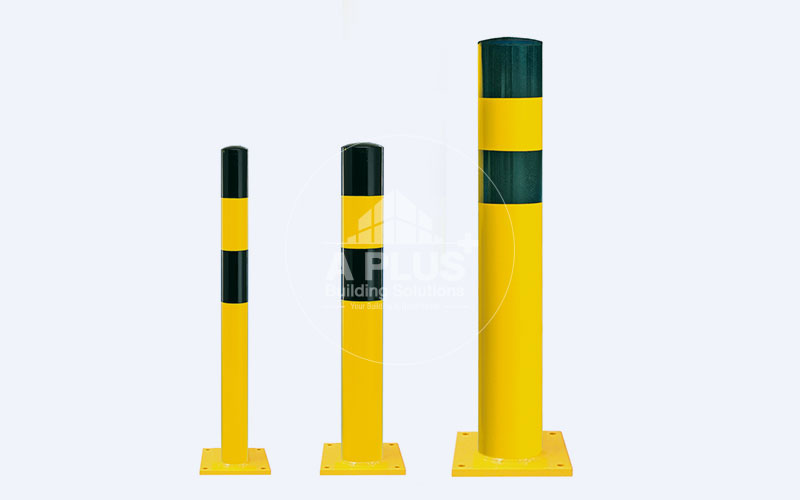

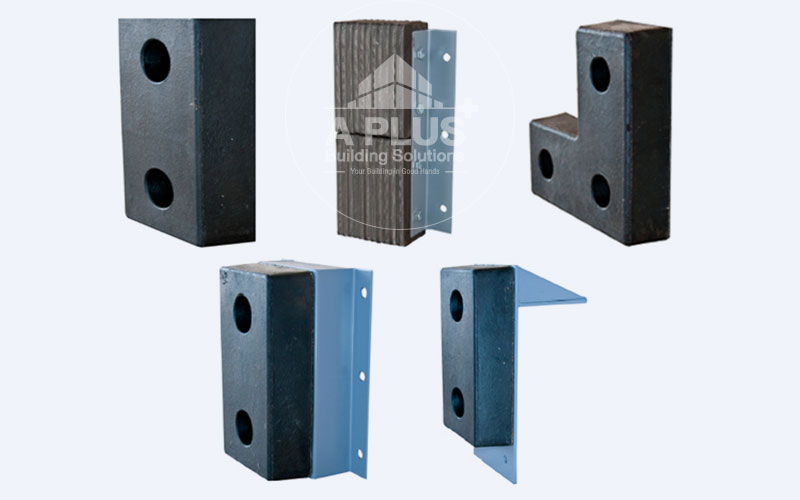

Quality air cutrains, insect traps, protection bollards, wheel guides, bumpers and fully customized protection solutions. Designed and installed by A+ to support all door function and ensure safe operation.
